oAuth 2.0 Client Credentials Authentication

oAuth 2.0 Client Credentials authentication performs the oAuth 2.0 client_credentials flow.

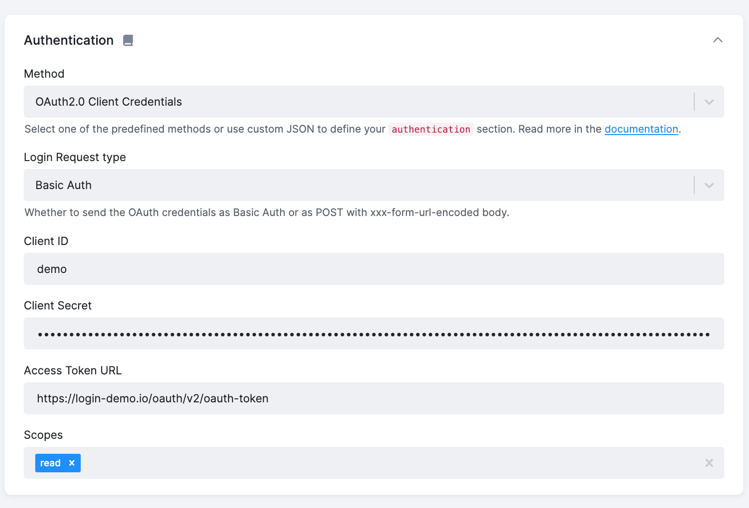

This method is available through the UI and is implemented via the Login method.

Configuration Parameters

• Login Request type
  • Basic Auth: The client_id and client_secret are sent in the Authorization header as a Basic authorization, e.g. Authorization: Basic base64(client_id:client_secret).
  • Post Form: The client_id and client_secret are sent as form data in the POST request body, e.g., {login_url}?client_id=client_id&client_secret=client_secret.
• Client ID: The client_id value
• Client Secret: The client_secret value
• Access Token URL: The URL where the access token is requested, e.g., https://login-demo.io/oauth/v2/oauth-token
• Scope: The scope of the access token. It is specific per API and can be left empty.

JSON

In the underlying JSON, the method is implemented as follows:

Place your secret into the config.#__CLIENT_SECRET and ID into the config.#__CLIENT_ID parameter. The Authorization header is then constructed using the concat function.

Basic Auth

{
    "api": {
      ...,
      "authentication": {
        "type": "login",
        "format": "json",
        "loginRequest": {
          "endpoint": "https://login-demo.io/oauth/v2/oauth-token",
          "method": "FORM",
          "headers": {
            "Accept": "application/json",
            "Authorization": {
              "function": "concat",
              "args": [
                "Basic ",
                {
                  "function": "base64_encode",
                  "args": [
                    {
                      "function": "concat",
                      "args": [
                        {
                          "attr": "__CLIENT_ID"
                        },
                        ":",
                        {
                          "attr": "#__CLIENT_SECRET"
                        }
                      ]
                    }
                  ]
                }
              ]
            }
          },
          "params": {
            "grant_type": "client_credentials",
            "scope": "read"
          }
        },
        "apiRequest": {
          "headers": {
            "Authorization": {
              "function": "concat",
              "args": [
                "Bearer ",
                {
                  "response": "access_token"
                }
              ]
            }
          }
        }
      }
  },
    "config": {
       "__CLIENT_ID": "CLIENT ID"
       "#__CLIENT_SECRET": "secret",
       "jobs": [...]
    }
}

Post Form

{
    "api": {
    ...,
    "authentication": {
      "type": "login",
      "format": "json",
      "loginRequest": {
        "endpoint": "https://login-demo.io/oauth/v2/oauth-token",
        "method": "FORM",
        "headers": {
          "Accept": "application/json"
        },
        "params": {
          "grant_type": "client_credentials",
          "scope": "read",
          "client_id": {
            "attr": "__CLIENT_ID"
          },
          "client_secret": {
            "attr": "#__CLIENT_SECRET"
          }
        }
      },
      "apiRequest": {
        "headers": {
          "Authorization": {
            "function": "concat",
            "args": [
              "Bearer ",
              {
                "response": "access_token"
              }
            ]
          }
        }
      }
    }
  },
    "config": {
       "__CLIENT_ID": "CLIENT ID"
       "#__CLIENT_SECRET": "secret",
       "jobs": [...]
    }
}
